To Specify Product, Select Input/Output Button or Chat with OSI Specialist

• AGW Family AC Watt Transducers


  Current Input	0-5Aac
  Voltage Input	0-300Vac L-N
  Output	4-20mAdc, 0-±10Vdc, 0-±1mAdc
  System Configuration	1Ø2W, 3Ø3W, 3Ø4W
  Accuracy	±0.2% Rdg.
  Frequency	58-62Hz
  Agency Approval	UL
  Measurement	AC
  Mounting	Panel

  Select Input & Output Chat Spec Sheet

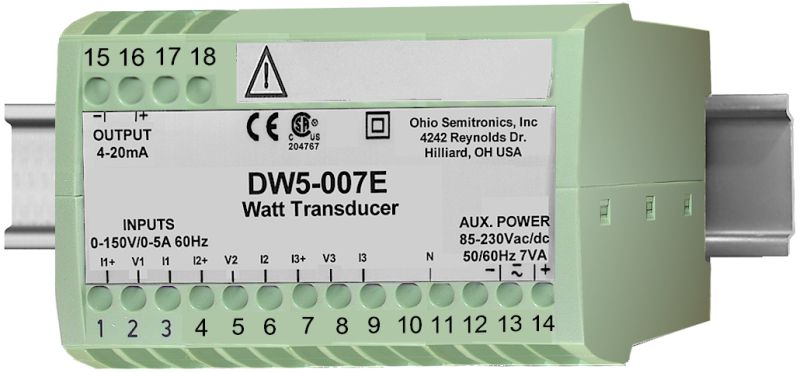

• DW5 Family AC Watt Transducers


  Output	0-±5Vdc, 4-20mAdc, 0-±10Vdc, 0-±1mAdc
  System Configuration	1Ø2W, 3Ø3W, 3Ø4W
  Current Input	0-5Aac
  Voltage Input	150/300/600Vac
  Accuracy	±0.5% F.S.
  Frequency	60Hz
  Agency Approval	CE, CSA
  Measurement	AC
  Mounting	DIN-Rail

  Call or chat for pricing &
  exact product specfications 614-777-1005

  Chat Spec Sheet
• GW5 Family AC Watt Transducers


  Instrument Power	115Vac, Self-Power
  Current Input	0-200Aac
  Voltage Input	200-280Vac L-N
  Output	0-±5Vdc, 4-20mAdc, 0-±10Vdc, 0-±1mAdc, 4-12-20mAdc
  Core Type	Direct, Solid-Core, Split Core
  System Configuration	1Ø2W, 3Ø3W, 3Ø4W
  Frequency	58-62Hz
  Measurement	AC
  Mounting	Panel

  Call or chat for pricing &
  exact product specfications 614-777-1005

  Chat Spec Sheet
• PC5 Family AC Watt Transducers


  Current Input	0-1000Aac
  Voltage Input	85-135Vac
  Output	0-±5Vdc, 4-20mAdc, 0-±10Vdc, 0-±1mAdc, 4-12-20mAdc, 4-20mAdc Loop
  Core Type	Direct, Solid Core
  System Configuration	1Ø2W, 3Ø3W, 3Ø4W
  Accuracy	±0.5% F.S.
  Frequency	48-70Hz
  Measurement	AC
  Mounting	Panel

  Call or chat for pricing &
  exact product specfications 614-777-1005

  Chat Spec Sheet
• WT3, WT5, WT6, WT7, WT9 Family AC Watt Transducers


  Mounting	Panel, DIN-Rail
  Current Input	0-1000Aac
  Voltage Input	0-600Vac
  Output	Analog, Serial, or Pulse
  Accuracy	Various; View Spec Sheet
  Frequency	10-500Hz
  Measurement	AC
  System Configuration	1Ø2W, 3Ø3W, 3Ø4W, or 1Ø3W

  Call or chat for pricing &
  exact product specfications 614-777-1005

  Chat Spec Sheet
